Product Description

l Optical Material: UV Fused Silica

l Operating Wavelength: 1050 nm-1700 nm

l Application: Imaging, Beam Expansion or Reduction

     Tuniu plano-convex lenses are made from UV-grade fused silica glass, offering better homogeneity and a lower coefficient of thermal expansion compared to N-BK7 glass, making them suitable for ultraviolet and near-infrared wavelength applications. These lenses have a positive focal length and are commonly used in imaging or beam collimation applications. Tuniu provides both unmounted and mounted plano-convex lenses, with an operating wavelength range of 1050 nm to 1700 nm and available in diameters of 12.7 mm, 25.4 mm, and 50.8 mm. The mounted lenses are pre-installed in standard lens barrels, with the product model, type, diameter, and focal length engraved on the barrel surface for easy identification of lens parameters. Additionally, Tuniu supports flexible customization of specifications to meet diverse application needs. For more details, please contact Tuniu technical support.

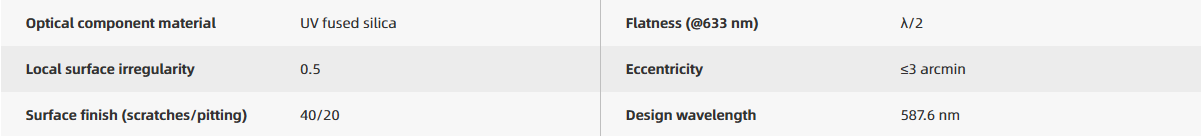

Attributes

Plano-convex lens, UVFS, AR coating: 1050 nm-1700 nm, with mount·

l Pre-installed Mechanical Housing or Unmounted

     Tuniu plano-convex lenses are made of UV fused silica glass, which offers better homogeneity and a lower coefficient of thermal expansion compared to N-BK7 glass, making them suitable for ultraviolet and near-infrared wavelength ranges. Tuniu plano-convex lenses have a positive focal length and are commonly used in applications such as imaging or beam collimation. Tuniu mounted lenses are pre-installed in standard lens tubes, with the product model, type, diameter, and focal length engraved on the tube surface for easy identification of lens parameters.
